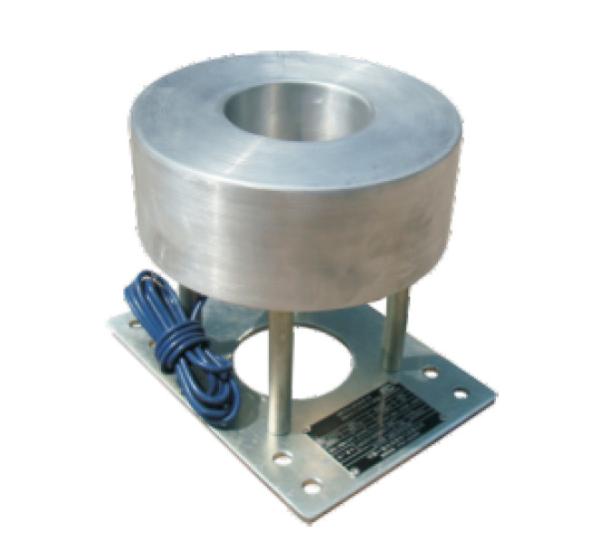

Multi - Function Instrument Current Sensor Split Core IEC60044-8

Name: Multi Function Instrument Current Sensor Split Core IEC600448
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : CYECT3-12W

Certification : KEMA,SGS,TUV,UL

Place of Origin : Shenzhen

MOQ : 1set

Price : Negetiable

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Packaging Details : 36,000,00pcs per year

Insulation level : 12/28/75kV

Function : Measure, Control, Protection

Accuracy class : 0.2 5P20/5TPE

Frequency : 50hz/60hz

Color : Can be Customized

Standard : IEC60044-8

Contact Now

Multi-function Instrument Current Transformer / Current Sensor / LPCT

1 Product introduction:

The products accord with standard IEC60044-8, GB/T20840.8-2007, and can meet customer’ s other special requirement. The products use Rogowski winding to test current, mainly used in =s 10kV switchgear, match with electric instrument, digital measure and protective equipment, can at the same time realize multi-functions such as measure, control, protection and data transmission etc, secondary open circuit can not produce high voltage.

2.Technical Data:

1. Rated primary voltage : 11 kV

2. Rated primary current: 50-2000A

3. Rated secondary voltage :

4V(measure), 200mV(protective)

4. Rated Burden>10kQ

5. Rated digital output:

0x2D41 (measure), 0x01 CF(protective)

6. Accuracy for measuring winding : 0.2

7. Accuracy for protection winding : 5P20/5TPE

8. Rated frequency : 50Hz

9. Rated insulation level: 12/28/75kV

10. Rated short time thermal current:

50-200: 150lpr, 300-2000A :31.5kA/1S

11. Rated dynamic current:

50-200A :375lpr, 300-2000A :80kA

12. Ambient temperature:

-5^ -4013 (indoor), -25<C-50<C(outdoor)

13. Ambient humidity : s£RH95%(25cC )

14. Altitude : sS 2000m( Can devise according customer’ s requirement)

3. Outline Drawing:

Multi - Function Instrument Current Sensor Split Core IEC60044-8
